Product Introduction

Model：

DD8010F1561/1575M

Product Introduction：

Product Description ： 1、High performance, high sensitivity, support GPS、Beidou band； 2、Ultra small size，dimension：8.00mmX1.00mmX1.00mm； 3、The utility model can be widely used in WiFi, Bluetooth device terminal； Product D

SLU0226DS
SLU0226DS
Product description
Product Description：
1、High performance, high sensitivity, support GPS、Beidou band；
2、Ultra small size，dimension：8.00mmX1.00mmX1.00mm；
3、The utility model can be widely used in WiFi, Bluetooth device terminal；

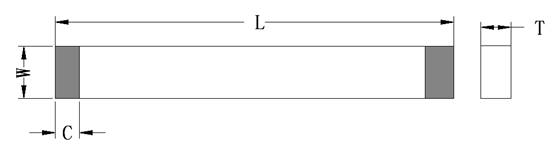

Product Dimension：

L(mm) 8.00±0.20
W(mm) 1.00±0.20
T(mm) 1.00±0.20


Product Introduction：
Antenna
Center Frequency
 1561/1575 MHz
Bandwidth
 51MHz typ
Peak Gain
 1.53dBic typ
V.S.W.R 1.5dB max
Impedance 50Ω
Azimuth Beamwidth Omni-directional
Mechanical Radome Material ceramics
Environmental Operating Temperature -40℃ to +105℃
Relative Humidity -40℃ to +105℃
Environmentally Friendly ROHS Compliant
