Product Introduction

Model：

DD5320F1575/1602P

Product Introduction：

Product Description ： 1、High performance, high sensitivity, support GPS、Beidou、GLONASS band； 2、Ultra small size，dimension：5.30mmX2.00mmX1.10mm； 3、The utility model can be widely used in various types of mobile phones, al

SLU0226DS
SLU0226DS
Product description
Product Description：
1、High performance, high sensitivity, support GPS、Beidou、GLONASS band；
2、Ultra small size，dimension：5.30mmX2.00mmX1.10mm；
3、The utility model can be widely used in various types of mobile phones, all kinds of wearable devices, as well as various types of portable handheld navigation equipment；

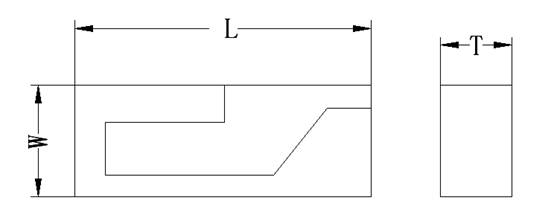

Product Dimension：

L(mm) 5.30±0.20
W(mm) 2.00±0.20
T(mm) 1.10±0.20



Product Introduction：
Antenna
Center Frequency
 1575/1602 MHz
Bandwidth
 80MHz typ
Peak Gain
 1.45/1.46dBic typ
V.S.W.R 1.5dB max
Impedance 50Ω
Azimuth Beamwidth Omni-directional
Mechanical Radome Material ceramics
Environmental Operating Temperature -40℃ to +105℃
Relative Humidity -40℃ to +105℃
Environmentally Friendly ROHS Compliant
