Product Introduction

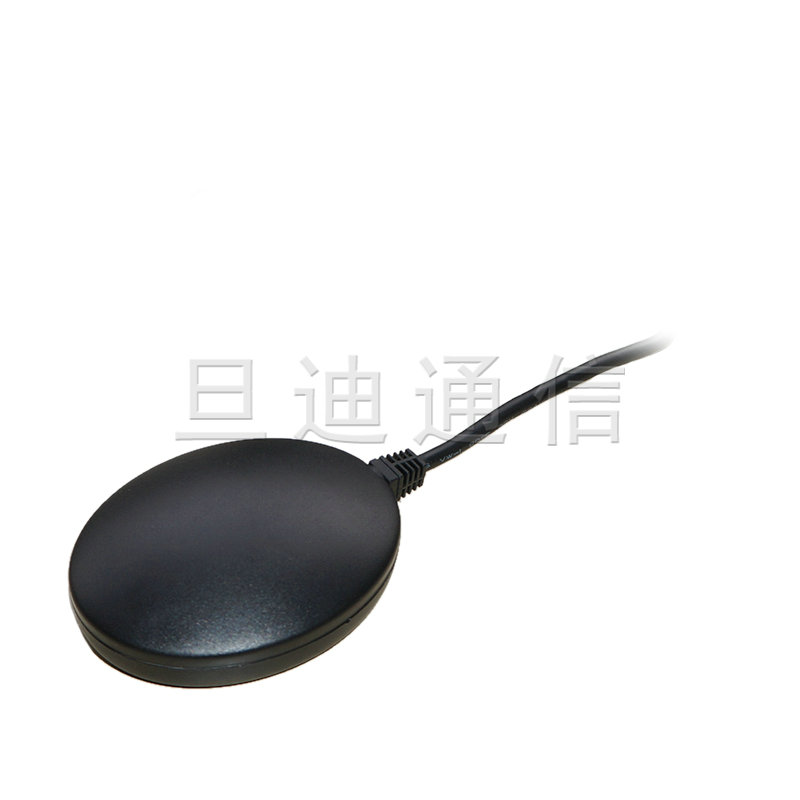

Model：

GBM-M01

Product Introduction：

Product Description ： 1、Integrated GPS module and GPS antenna as one of the devices to support Beidou, GPS remote； 2、High performance, low power consumption, fast positioning, dimension：68.0mmX54.0mm X 20.0mm； 3、Mounting Metho

SLU0226DS
SLU0226DS
Product description
Product Description：
1、Integrated GPS module and GPS antenna as one of the devices to support Beidou, GPS remote；
2、High performance, low power consumption, fast positioning,
      dimension：68.0mmX54.0mm X 20.0mm；
3、Mounting Method：USB/RS232/UART or others；
4、The utility model can be widely used in Beidou Positioning Equipment；

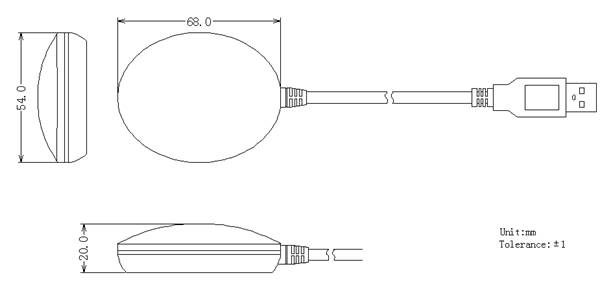

Product Dimension：



Product Introduction：
Chip MediaTek MT3333
Frequency GPS : L1 1575.42MHz,BD2: B1 1561.098MHz
Channels Support 99 channels
Update rate 1Hz default
Sensitivity Tracking -163dBm (with external LNA)
Acquisition Hot start
(Open Sky)		 1s (typical)
Cold Start
(Open Sky)		 35s (typical)
Position Accuracy Autonomous 2.5m CEP(50%)
Limit value Max. Altitude < 18,000 m （Max）
Max. Velocity < 515 m/s  （Max）
Protocol Support NMEA 0183 ver 3.01 9600 bps, 8 data bits, no parity, 1 stop bits (default)
1Hz: GGA, GLL, GSA, RMC, VTG
Input Voltage VCC 5.0±0.3V
Supply Current Acquisition 50mA  @5.0V (typical)
Temperature Operating Temperature -40 ~ +85℃
Storage Temperature -40 ~ +85℃
Weight ＜103g
